Plate and Frame

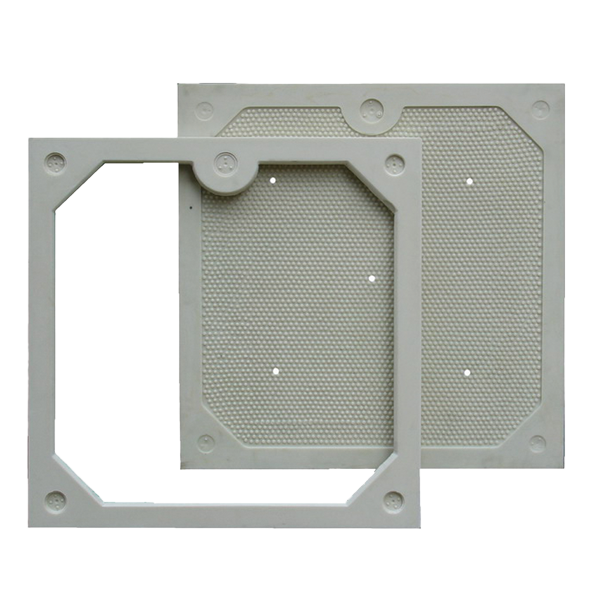

The Plate and Frame Filter Press Plates, the original filter press concept in technology, is still a trusted solution in many industries today. This traditional design consists of filtration chambers formed by alternating plates and frames – the frame forms the chamber where the filter cake is developed. The suspension fills up the chambers while its filtrate is drained through Spigot / Cock / Nozzle on filtration plates so that it operates through pressure filtration. These are a great option when there is less interest in volume but more emphasis on filtration area as well as highly viscosity slurry such as specialized processes like Paper Industry, Viscose & Staple Fiber Filtration, Edible Oil, Commercial Oil Filtration and many more.
Key Features
- Classic Design: The old plate-and-frame designs are still valuable in many filtration operations especially when accurate control of surface areas is necessary.
- Customizable Cake Thickness: For specific applications, frame plates that determine the thickness of a filter cake can vary from 10 to 50 mm hence offering customization flexibility.
- Versatile Material Options: It is also available in high-performance polypropylene (HP/CP) material which can be applied up to 80°C resisting most chemicals.
- Variable Pressure Range: It works within a pressure range of 4 to 8 bars quite effectively thus providing an ability to deal with different types of suspensions or filtration needs.
